Jeep Willys MB / Ford GPW year 42-45

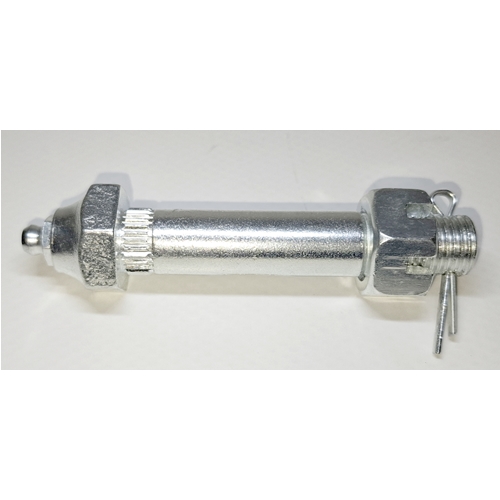

one Leaf Spring Pivot Eye Bolt short
including grease nipple, nut and cotter pin.
Diameter: 9/16″ (14mm)
Length: 2-7/8″ (74.6mm)
Is located at the rear end of the front leaf springs and at the front end
used for the rear leaf spring assemblies.
Please note:
Four of these bolts are needed for one vehicle.
Due to age, corrosion and high mechanical stress
Original leaf spring bolts often wear out or become rusted solid in the frame.
Made from robust, high-strength steel, this bolt
Designed for continuous use in off-road and on-road applications.
It is ideally suited for chassis overhauls, leaf spring replacement, restoration work
as well as for replacing worn original bolts.
Reference numbers: J0384228, 384228, WO384228, WO-384228, FM-GPW-5468, 18270.01
