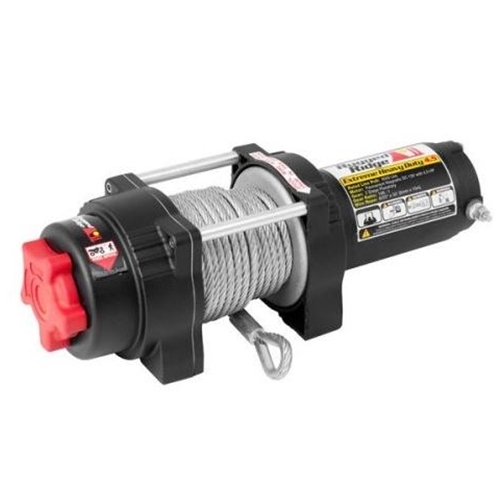

HD cable winch with a high-quality wire rope
Pulling force up to 4,500 lbs (≈ 2,041 kg)
Manufacturer: Rugged Ridge
Technical data
Nominal tensile force: 2041 kg (4500 lb) single rope
Motor: Permanent magnet motor, 12 V DC, with
2.0 HP/1.2 kW power
Gearbox: Robust 3-stage planetary gear
Automatic load-holding braking system
Gear ratio: 198:1
Wire rope: 6 mm x 13.7 m (6/25" x 45')
Drum size: 50 mm x 76.5 mm
Dimensions: 334 mm x 114 mm x 120 mm
Bolt circle: 124 mm x 76 mm
Useful weight: 8.6 kg (19 lb)
Water and dirt resistant, compact design (~2 kg), ideal for lighter vehicles
Solid technology with planetary gears, automatic brake and long-lasting motor.
This HD winch is a reliable, efficient winch with 4 500 lbs capacity,
ideal for ATV/UTV applications.
Its compact weight, robust design and integrated safety features
make them an excellent choice for off-road use.
Reference No.: 15100.70
