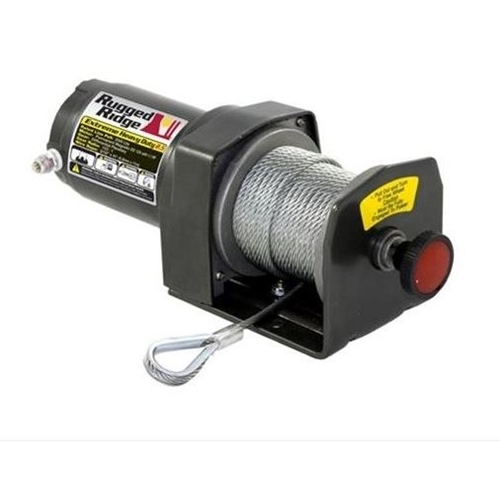

HD cable winch with a high-quality wire rope
Pulling force up to 2,500 lbs (≈ 1,133 kg)
Manufacturer: Rugged Ridge
Technical data
Motor: 12V permanent magnet, approx. 1.1 HP
Gearbox: Single-stage planetary gearbox with a ratio of 153:1 for powerful pull
Rope: 50 ft (≈15 m) strong steel rope (∅≈4.8 mm) with hook
Brake: Mechanical load-holding brake system integrated in the gearbox
Accessories: 200 A Solenoid, Switchable Free-Spool Clutch, Roller Fairlead,
Handlebar remote control and mounting kit
Weight: Compact, typical ATV/UTV level (≈ 5–6 kg estimated)
Despite its smaller size, it offers strong performance for 2 500 lbs load
Robust, powder-coated housing and stainless steel screws reduce corrosion
This HD cable winch offers a very good combination of compact size
and robust performance for ATV and UTV applications.
It is well equipped, can be installed directly and is made of galvanized components
and powder-coated surface resistant to weather.
Reference No.: 15100.55
